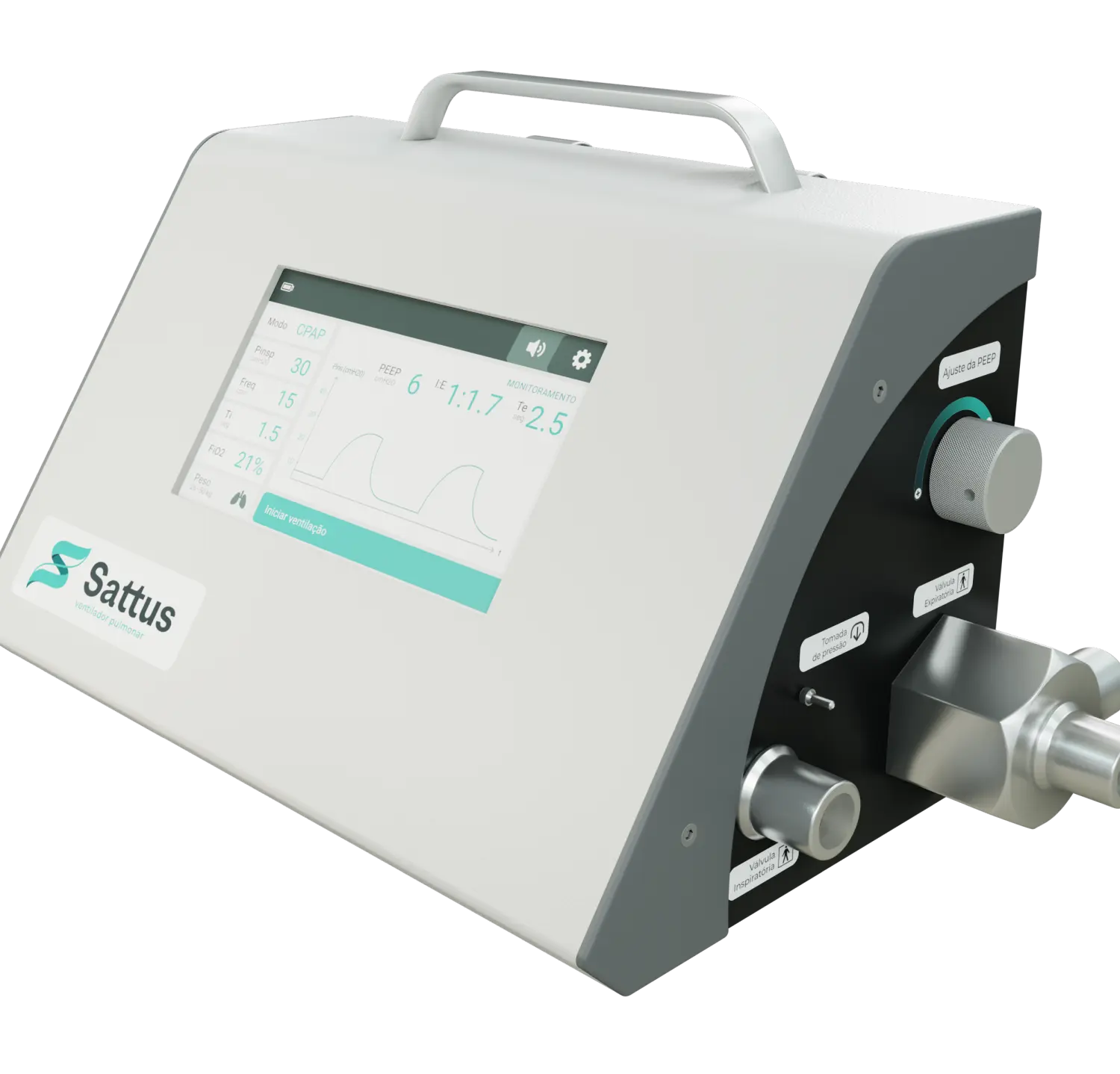

Class II mechanical ventilator

COVID-19 Mechanical ventilator designed for patients not dependent on mechanical ventilation

Wound Assessment Device - Detailed prototype view

System Characteristics

Sensors and Measurement

Pressure and flow sensors
Open loop O2 control
Extraction of ventilatory parameters from a reduced number of sensors
Li-ion battery fuel-gauge

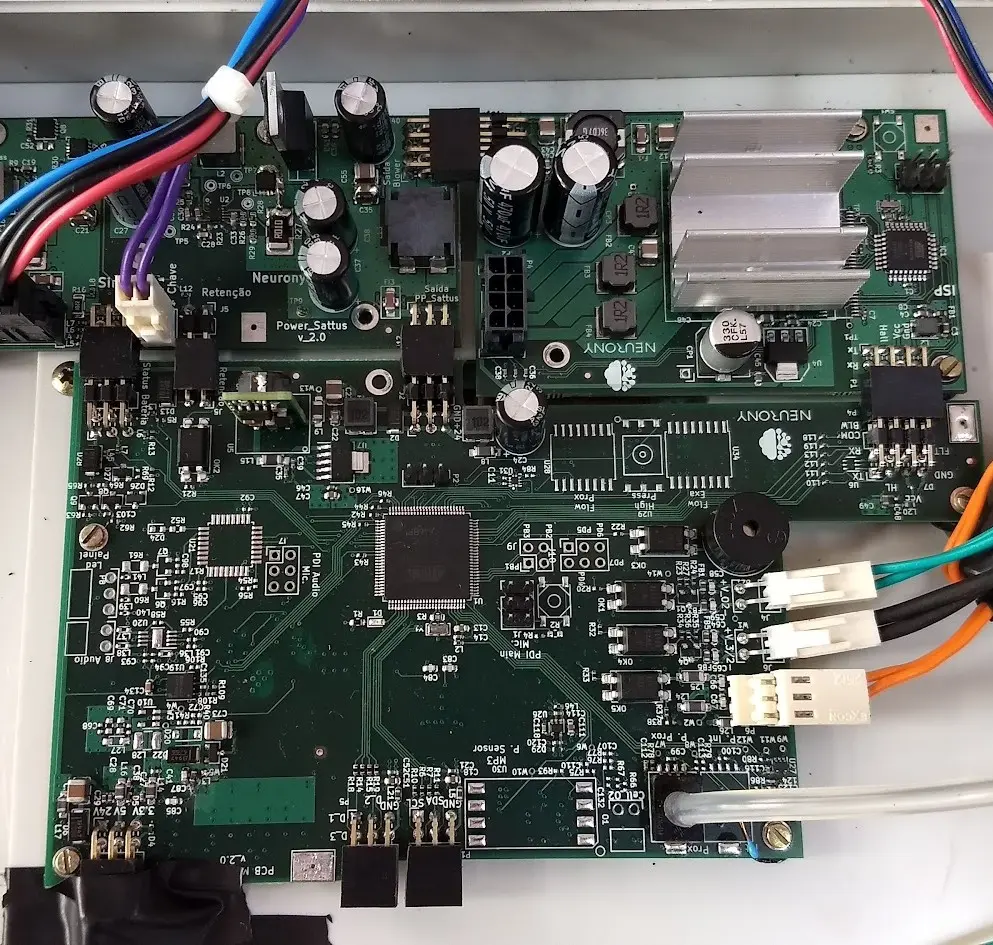

Hardware Capabilities

1 large brushless DC blowers (150W)
Custom valves and pneumatic circuit
Firmware designed with a hard real-time premise
Stable supply chain for electronics

Interface and Safety

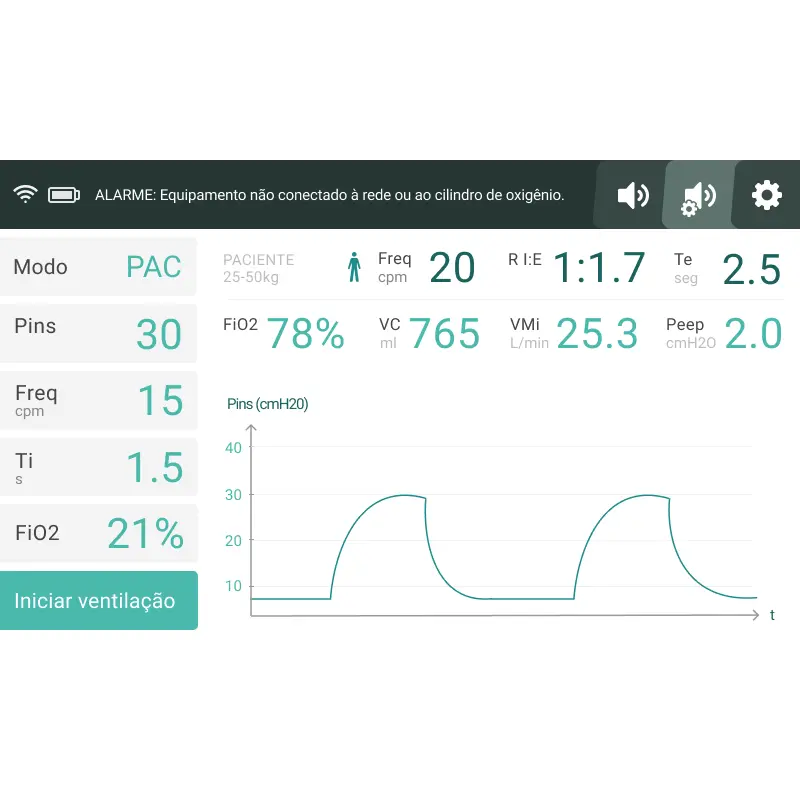

7" touchscreen interface controlled by a single 8-bit microcontroller
Pneumatic and electronic controls for simplicity and cost reduction
Continuous operation device
Professional operation mode

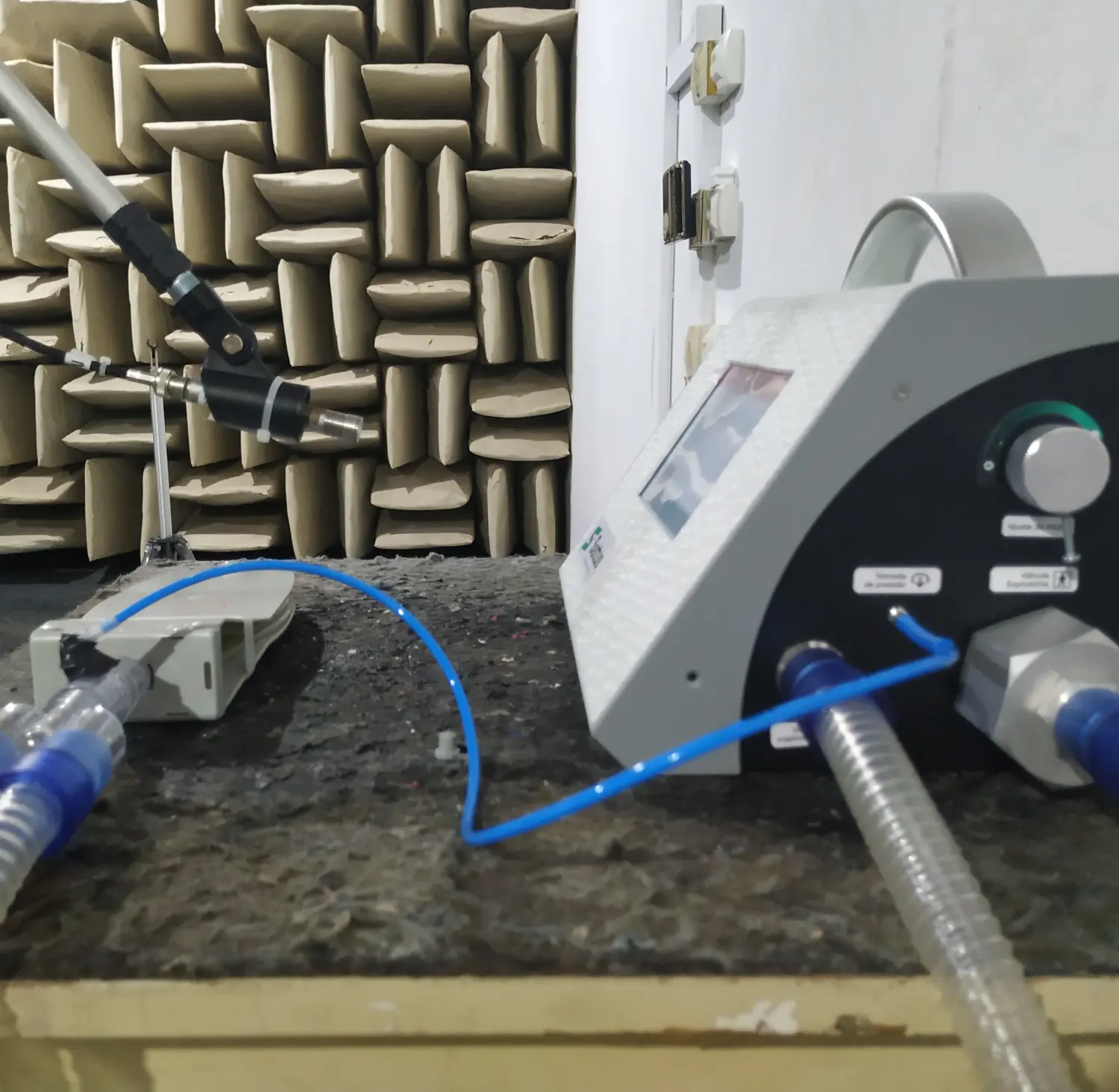

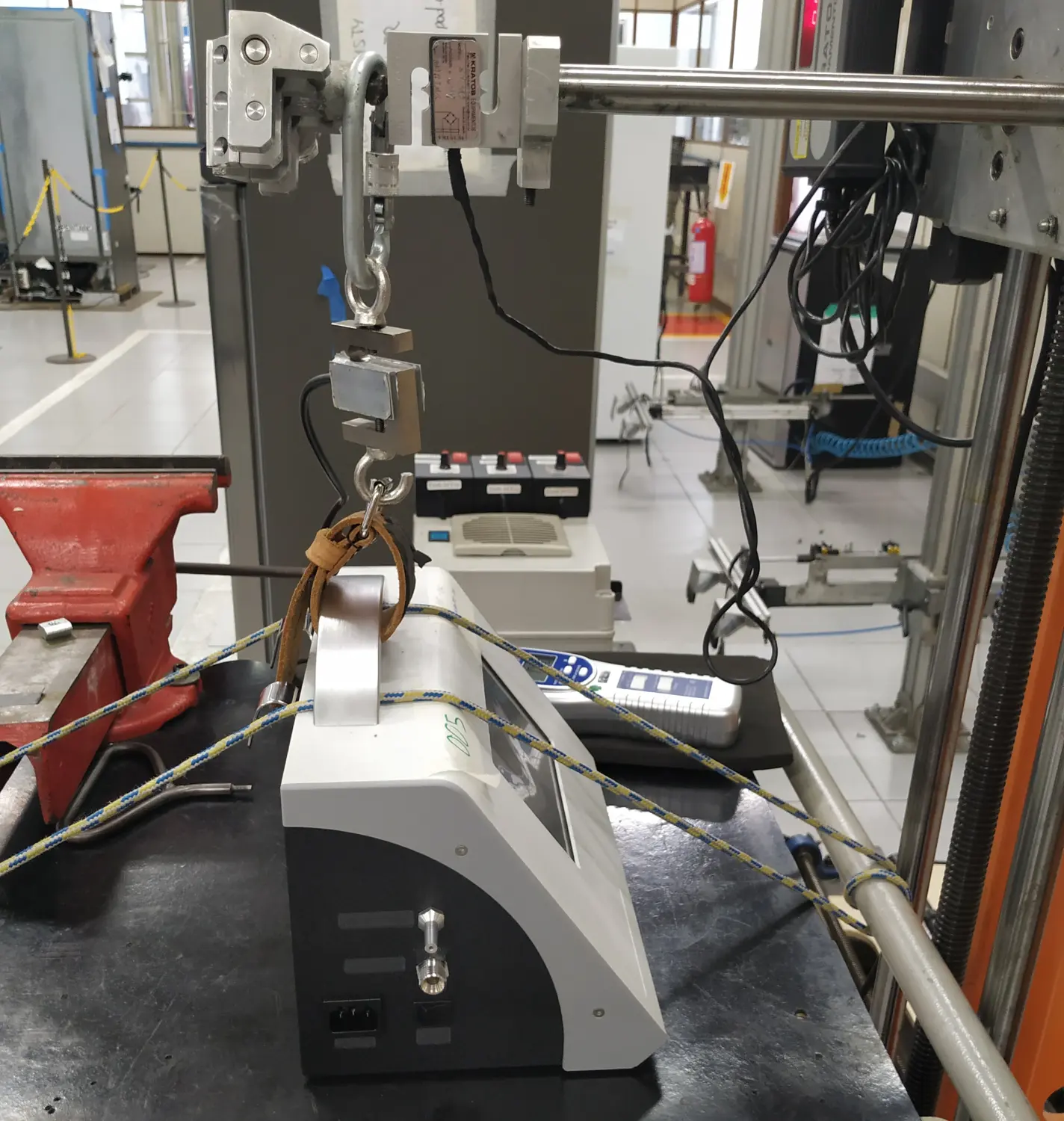

Certifications and Regulatory Compliance

IEC 60601-1

Basic Safety and Essential Performance

IEC 60601-1-2

Medical Devices - Quality management systems

ANVISA fast-track

COVID-19 fast-track protocol

IEC 60601-1-6

Medical electrical equipment: Usability

Project Description

Developed and certified in only 6 months during the critical days of the COVID pandemic, this mechanical ventilator was designed for Brazilian patients not fully dependent on mechanical ventilation for survival, as many researches have shown that non-invasive ventilatory support help increase the survival rates of COVID-19 patients.

Its development faced huge challenges, including shortages of raw materials, electronic components, and specialized workforce. To overcome these hurdles, our team partnered with Whirlpool engineers, finding innovative solutions.

These hard times provided valuable lessons and strengthened my ability to adapt and deliver under extreme conditions.
